High Precision Filament Diameter Measurement Instrument For Testing Machine

Brand Name : Mercury-tech

Model Number : CDM03

Certification : ISO9001

Place of Origin : China Zhengzhou

MOQ : 1 PCS

Price : negotiation

Payment Terms : T/T

Supply Ability : 500 Set/Sets per Month

Delivery Time : In three days after getting your payment

Packaging Details : Carton or Wooden Box

Lead Time : In three days after getting your payment

Usage : Auto Testing Machine

Operating voltage : 220V, 50Hz or per request

Type : Measurement Tool

Material : metal

Color : blue

Contact Now

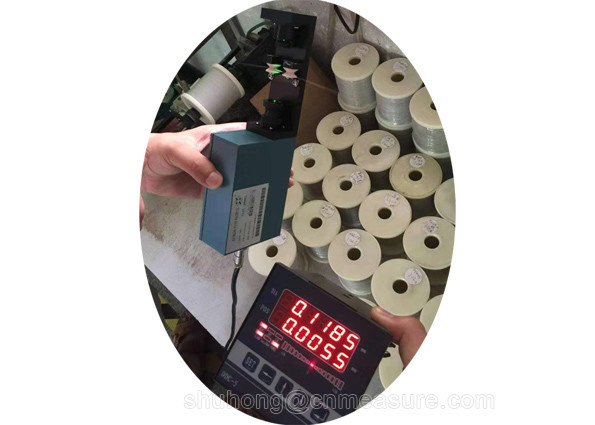

High Precision Diameter Measuing Instrument For Filament Diameter Measurement. Model CDM03
Filament diameter measuring instrument is the high-accuracy survey installment that uses the CCD scan to carry on the no-contacts on-line survey. Applicable to metal sick, optical fiber , etc with the measurement and control. can simultaneously show the silk and fiber's diameter, roundness.



1. The performance indicators:
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V ± 15% 50 - 60Hz
Operating temperature: -10 ~ 40 °C
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
Measuring head: 372mm×360mm×60mm



2. Technical parameters

Model Measuring Range Differentiation Accuracy
LDM-25 0.2-20mm 0.001 ±0.02%×(Reading)±0.001mm
CDM-03 0.01-2mm 0.001 ±0.02%×(Reading)±0.001mm



High Precision Filament Diameter Measurement Instrument For Testing Machine



3. The Device with the following Characteristics
(1). Can be connected PLC, industrial computer.
(2). RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
(3). Can be equipped remote controller DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.
